RGT 6600 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)
• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

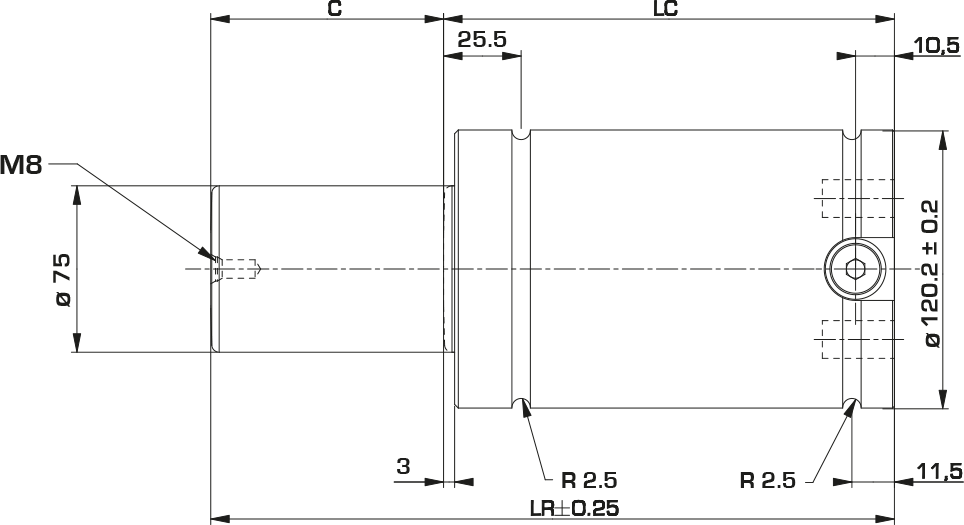

| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 6600 | 16 | 443684/000-S | 15
(150) (!) |
66 270 | 95 130 | 104 | 88 | 6,07 | 3D |
| 19 | 443685/000-S | 97 170 | 110 | 91 | 6,27 | 3D | ||||
| 25 | 443686/000-S | 100 230 | 122 | 97 | 6,60 | 3D | ||||
| 32 | 443687/000-S | 102 640 | 136 | 104 | 6,77 | 3D | ||||
| 38 | 443688/000-S | 104 230 | 148 | 110 | 7,07 | 3D | ||||
| 50 | 443689/000-S | 106 480 | 172 | 122 | 7,70 | 3D | ||||
| 63 | 443690/000-S | 108 040 | 198 | 135 | 8,17 | 3D | ||||
| 75 | 443691/000-S | 109 020 | 222 | 147 | 8,70 | 3D | ||||
| 80 | 443692/000-S | 109 360 | 232 | 152 | 9,07 | 3D | ||||
| 100 | 443693/000-S | 110 490 | 272 | 172 | 9,90 | 3D | ||||
| 125 | 443694/000-S | 114 320 | 322 | 197 | 11,20 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGT 6600 C50
Spare Kit : 896561/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
