RGT 4200 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

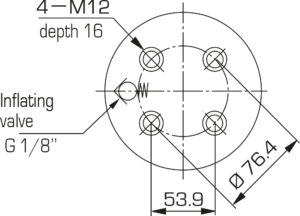

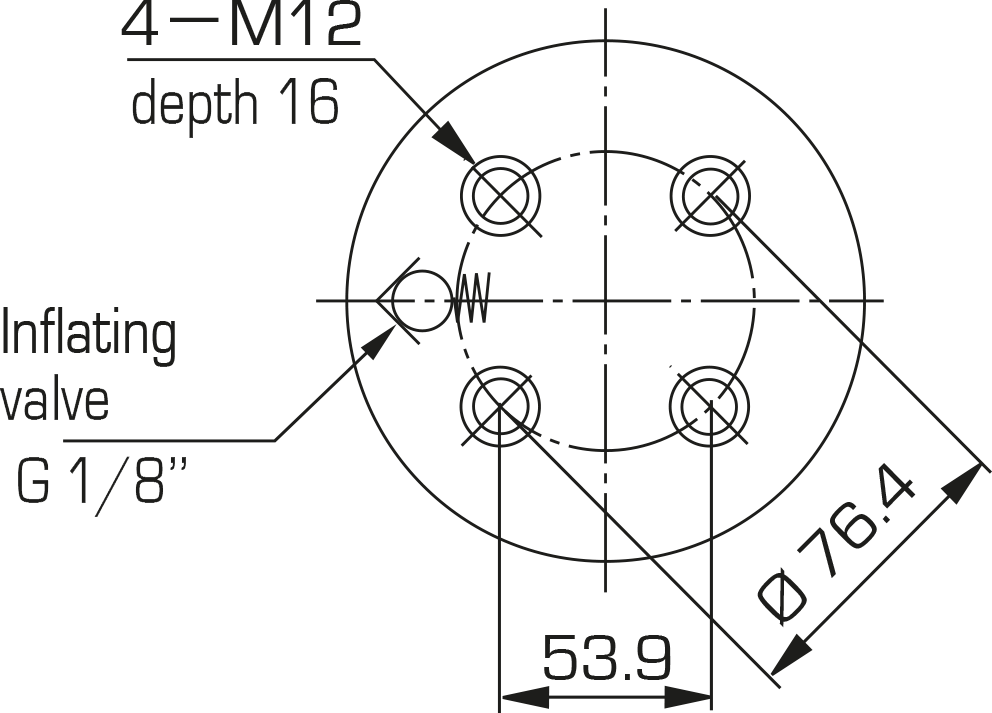

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

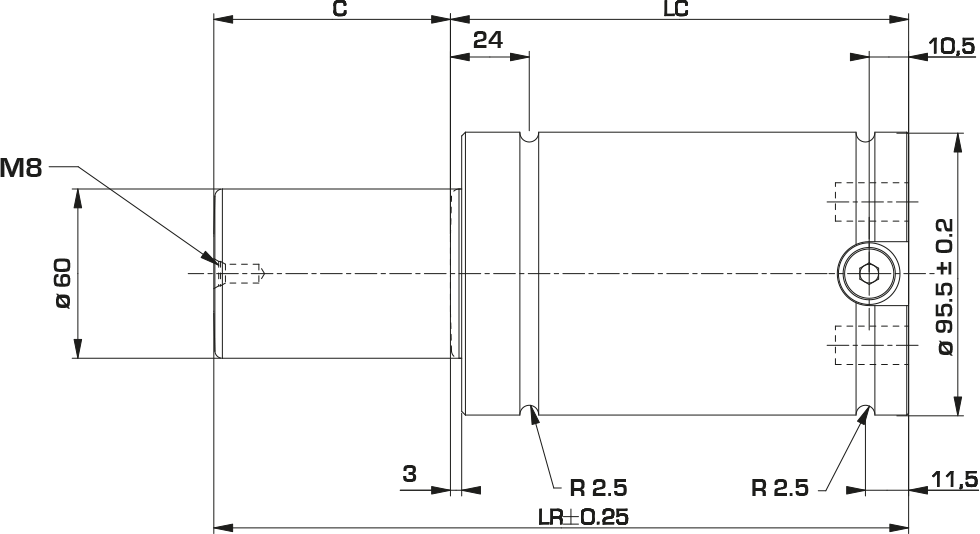

| Type | Force | Course C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 4200 | 16 | 443664/000-S | 15
(150) (!) |
42 420 | 62 890 | 94 | 78 | 3,30 | 3D |
| 19 | 443665/000-S | 63 870 | 100 | 81 | 3,40 | 3D | ||||
| 25 | 443666/000-S | 65 610 | 112 | 87 | 3,60 | 3D | ||||
| 32 | 443667/000-S | 66 790 | 126 | 94 | 3,80 | 3D | ||||
| 38 | 443668/000-S | 67 670 | 138 | 100 | 3,90 | 3D | ||||
| 50 | 443669/000-S | 68 770 | 162 | 112 | 4,20 | 3D | ||||
| 63 | 443670/000-S | 69 520 | 188 | 125 | 4,60 | 3D | ||||
| 75 | 443671/000-S | 70 020 | 212 | 137 | 4,90 | 3D | ||||
| 80 | 443672/000-S | 70 170 | 222 | 142 | 5,00 | 3D | ||||
| 100 | 443673/000-S | 70 700 | 262 | 162 | 5,50 | 3D | ||||
| 125 | 443674/000-S | 71 960 | 312 | 187 | 6,20 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGT 4200 C50
Spare Kit : 896534/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
