RGT 2400 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

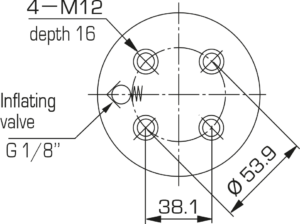

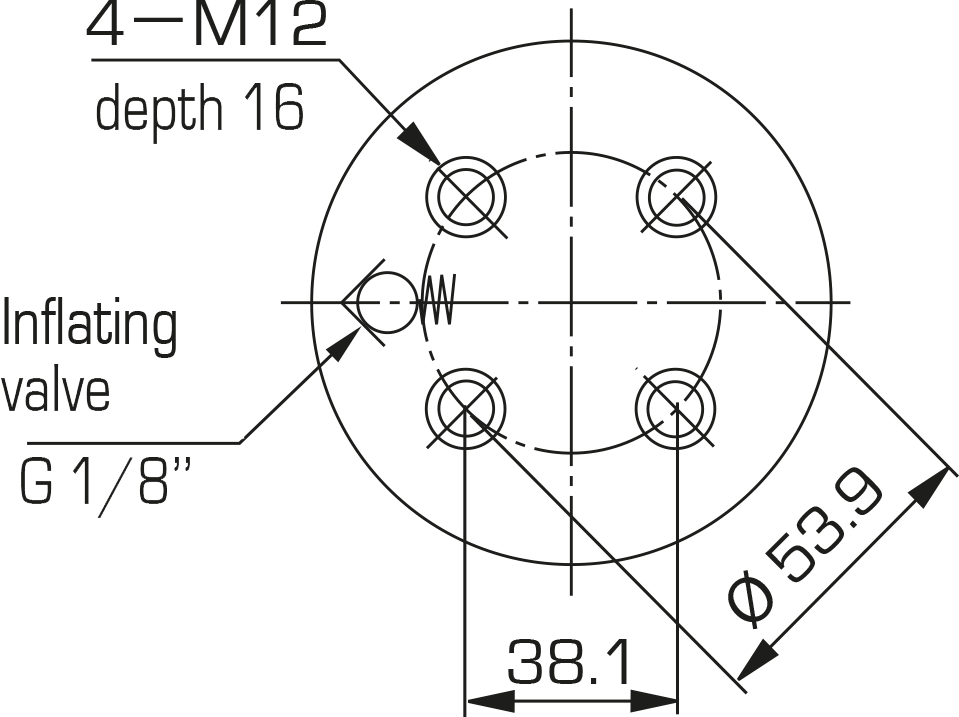

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

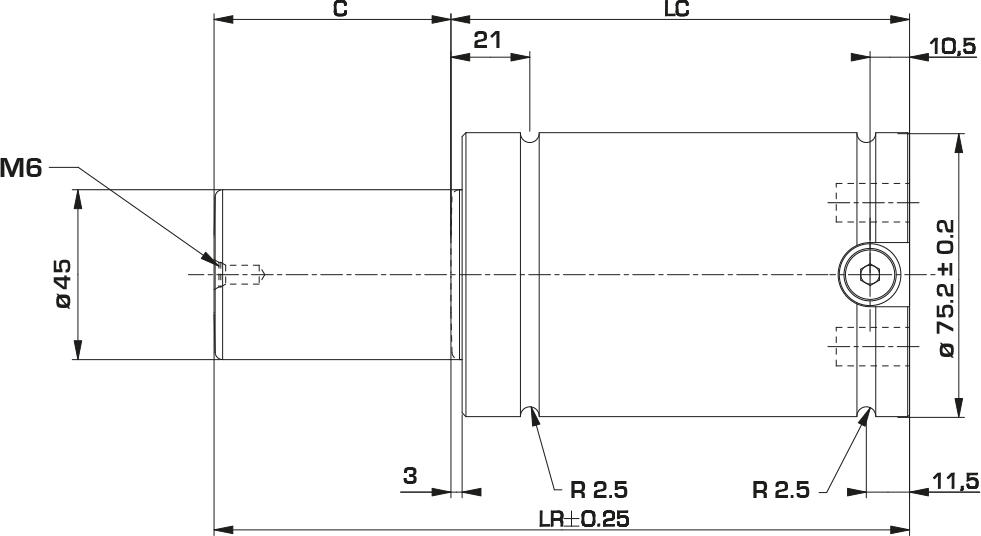

| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 2400 | 16 | 443644/000-S | 15
(150) (!) |
23 860 | 36 120 | 91 | 75 | 1,93 | 3D |
| 19 | 443645/000-S | 36 560 | 97 | 78 | 1,97 | 3D | ||||
| 25 | 443646/000-S | 37 370 | 109 | 84 | 2,00 | 3D | ||||
| 32 | 443647/000-S | 37 810 | 123 | 91 | 2,01 | 3D | ||||
| 38 | 443648/000-S | 38 200 | 135 | 97 | 2,11 | 3D | ||||
| 50 | 443649/000-S | 38 630 | 159 | 109 | 2.60 | 3D | ||||
| 63 | 443650/000-S | 38 920 | 185 | 122 | 2,80 | 3D | ||||
| 75 | 443651/000-S | 39 110 | 209 | 134 | 3,00 | 3D | ||||
| 80 | 443652/000-S | 39 140 | 219 | 139 | 3,03 | 3D | ||||
| 100 | 443653/000-S | 39 360 | 259 | 159 | 3,40 | 3D | ||||
| 125 | 443654/000-S | 39 460 | 309 | 184 | 3,80 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RGT 2400 C50
Spare Kit : 896533/000.
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
