RGP 500 gas spring

Features

• Diameter from 19 to 150 mm
• Stroke : from 7 to 125 mm
• Force : from 170 to 9500daN (9.5t)
• Very compact size
• Solid design (no welding)

Print this sheet
RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 2
RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 3
RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 4
RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 5

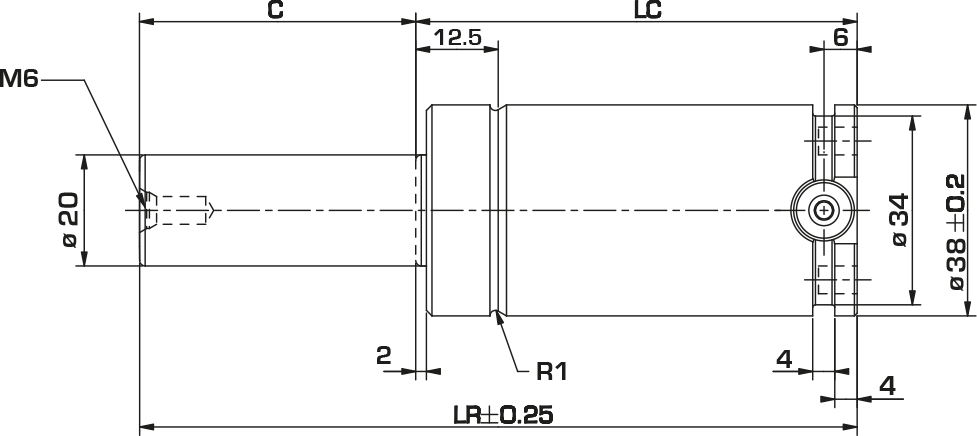

Type Force Stroke C Reference ISO Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGP 500 10 443261/000-S X 15

(150)

(!)

 4 720 7 260 50 40 0.257 3D
13 443262/000-S X 7 510 56 43 0.308 3D
16 443264/000-S X 7 370 62 46 0.359 3D
19 443265/000-S 7 530 68 49 0.410 3D
25 443266/000-S X 7 540 80 55 0.461 3D
32 443267/000-S 7 520 94 62 0.512 3D
38 443268/000-S X 7 530 106 68 0.563 3D
50 443269/000-S X 7 660 130 80 0.614 3D
63 443270/000-S X 7 630 156 93 0.665 3D
75 443271/000-S 7 620 180 105 0.716 3D
80 443272/000-S X 7 630 190 110 0.767 3D
100 443273/000-S X 7 660 230 130 0.818 3D
125 443274/000-S X 7 630 280 155 0.869 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGP 500 C50
Spare kit : 896529/000
Composition : Guide ring, seals, valve and lubricant.

RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 6

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure. (<15 MPa)

RGP 500 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 7
