RGP 320 gas spring
CAUTION : This gas spring cannot be repaired

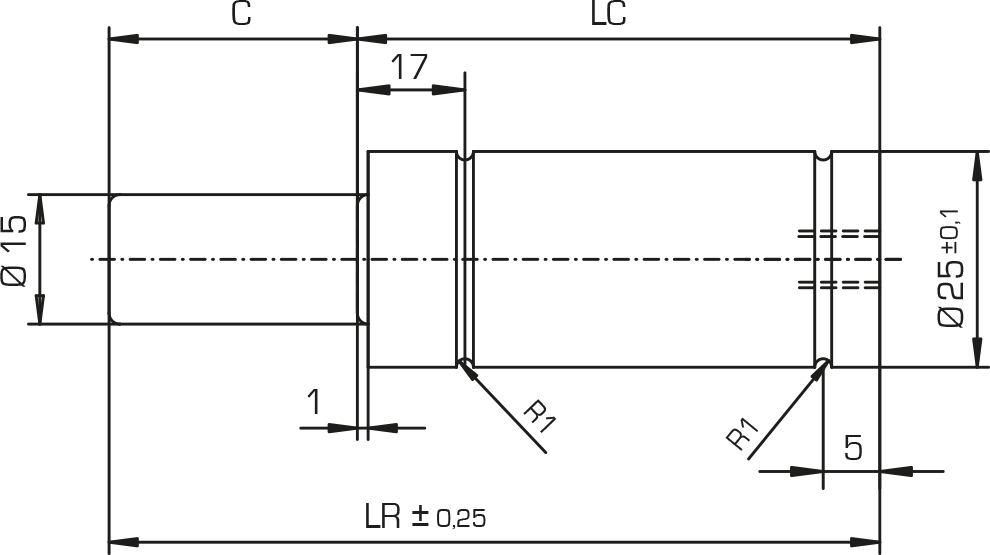

| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RGP | 320 | 7 | 443220/000 | 18
(180) (!) |
3 190 | 4 240 | 44 | 37 | 0.070 | 3D | |
| 10 | 443221/000 | X | 4 530 | 50 | 40 | 0.105 | 3D | ||||
| 15 | 443223/000 | X | 4 780 | 60 | 45 | 0.140 | 3D | ||||
| 19 | 443225/000 | 5 090 | 68 | 49 | 0.175 | 3D | |||||
| 25 | 443226/000 | X | 5 340 | 80 | 55 | 0.210 | 3D | ||||
| 38 | 443228/000 | X | 5 500 | 106 | 68 | 0.245 | 3D | ||||
| 50 | 443229/000 | X | 5 510 | 130 | 80 | 0.280 | 3D | ||||
| 63 | 443230/000 | X | 5 580 | 156 | 93 | 0.315 | 3D | ||||
| 75 | 443231/000 | 5 720 | 185 | 110 | 0.350 | 3D | |||||
| 80 | 443232/000 | X | 5 720 | 195 | 115 | 0.385 | 3D | ||||
| 100 | 443233/000 | X | 5 720 | 235 | 135 | 0.420 | 3D | ||||
| 125 | 443234/000 | X | 5 720 | 285 | 160 | 0.460 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGP 320 C50
Spare kit : Not repairable.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure. (<18 MPa)
