RGP 170 gas spring

Features

• Diameter from 19 to 150 mm
• Stroke : from 7 to 125 mm
• Force : from 170 to 9500daN (9.5t)
• Very compact size
• Solid design (no welding)

Print this sheet
RGP 170 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 2
RGP 170 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 3
RGP 170 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 4

CAUTION : This gas spring cannot be repaired

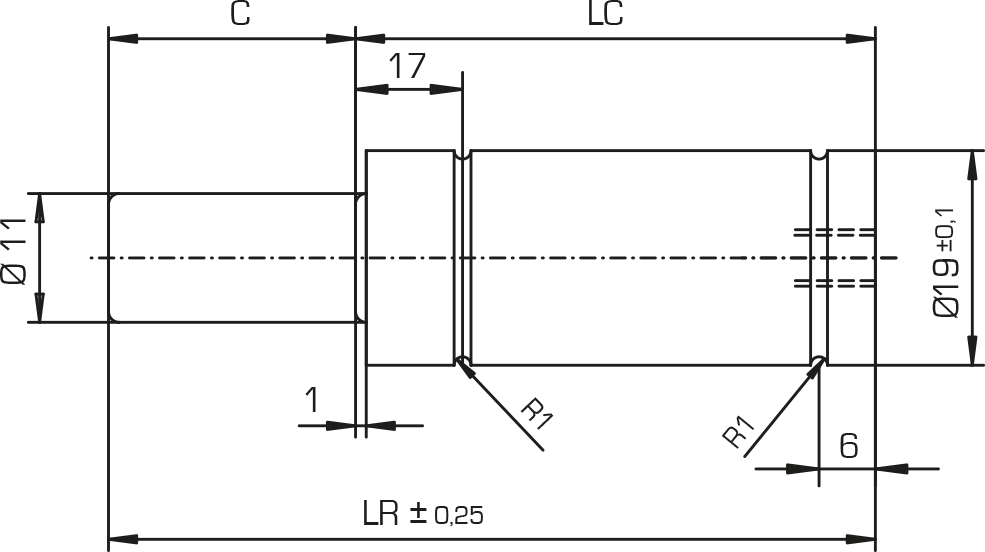

Type Force Stroke C Reference ISO Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGP 170 7 443200/000 18

(180)

(!)

 1 720 2 220 44 37 0.050 3D
10 443201/000 X 2 520 50 40 0.080 3D
15 443203/000 X 2 680 60 45 0.110 3D
19 443205/000 2 700 68 49 0.140 3D
25 443206/000 X 2 850 80 55 0.170 3D
38 443208/000 X 2 880 106 68 0.200 3D
50 443209/000 X 3 030 130 80 0.230 3D
63 443210/000 X 3 010 156 93 0.260 3D
75 443211/000 3 110 185 110 0.290 3D
80 443212/000 X 2 980 195 115 0.320 3D
100 443213/000 X 3 030 235 135 0.350 3D
125 443214/000 X 3 080 285 160 0.380 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGP 170 C50
Spare kit : Not repairable.

RGP 170 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 5

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure. (<18 MPa)

RGP 170 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 6
