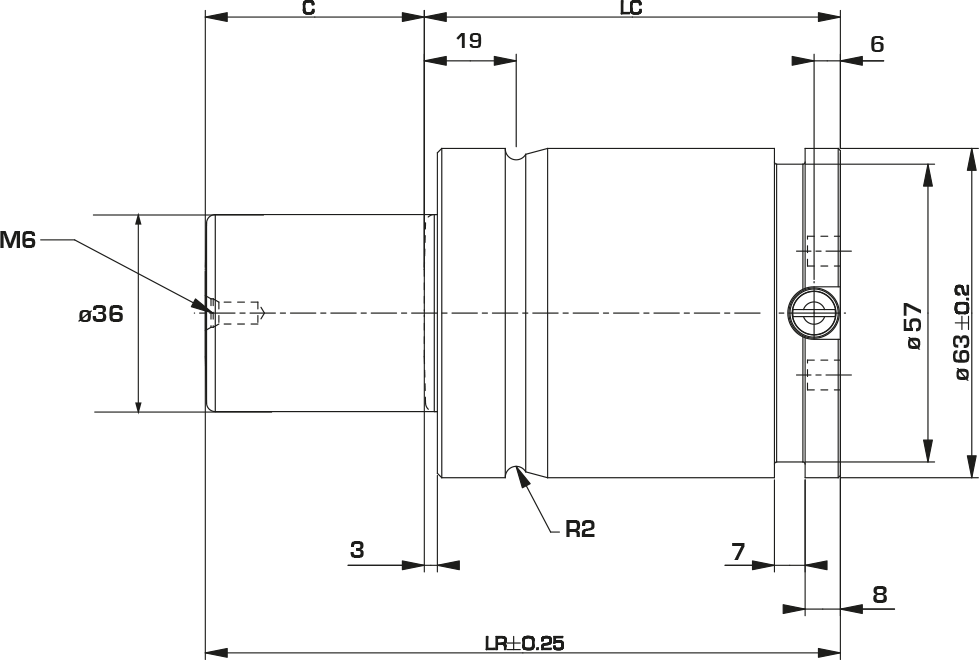

RGP 1500 gas spring
| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RGP | 1500 | 13 | 443322/000-S | X | 15
(150) (!) |
15 270 | 21 440 | 70 | 57 | 1.00 | 3D |
| 16 | 443324/000-S | 21 870 | 76 | 60 | 1.04 | 3D | |||||
| 19 | 443325/000-S | 22 360 | 82 | 63 | 1.10 | 3D | |||||
| 25 | 443326/000-S | X | 22 810 | 94 | 69 | 1.20 | 3D | ||||
| 32 | 443327/000-S | 23 240 | 108 | 76 | 1.25 | 3D | |||||
| 38 | 443328/000-S | X | 23 440 | 120 | 82 | 1.32 | 3D | ||||
| 50 | 443329/000-S | X | 23 710 | 144 | 94 | 1.47 | 3D | ||||
| 63 | 443330/000-S | X | 24 030 | 170 | 107 | 1.63 | 3D | ||||
| 75 | 443331/000-S | 24 130 | 194 | 119 | 1.77 | 3D | |||||
| 80 | 443332/000-S | X | 24 180 | 204 | 124 | 1.83 | 3D | ||||
| 100 | 443333/000-S | X | 24 350 | 244 | 144 | 2.10 | 3D | ||||
| 125 | 443334/000-S | X | 24 450 | 294 | 169 | 2.40 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGP 1500 C50
Spare kit : 896532/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
